性能特点：
Main features
1、原装进口液压元件驱动、液压双轮驱动、无级变速；电控振动；操作灵活安全轻便
2、激振力大，压实效率高
3、前轮液压转向更适合狭窄工地及弯道压实
4、配置可供选购的平板拖车，便于施工转换
5、可选配国产或进口发动机(柴油机或汽油机)
1、Imported hydraulic components
drive, hydraulic double drum drive, stepless variable speed. Electric
vibration; Lightweight flexible operation safety
2、Vertical vibration with great
centrifugal force and high efficiency
3、Front-drum hydraulic steering
assure rolling compaction into narrow ground
4、A trailer is provided for transportation
5、The domestic or imported engines
are optional(diesel engine or gasoline engine)
适用范围：
Application
道路、沟槽、县乡公路、停车场等狭窄场地的基层和沥青面层的压实和修补
Road, trenches, country and township roads and parking ground etc. compacting
and repairing the asphalt pavement and road base.
技术参数：
|
型号
|

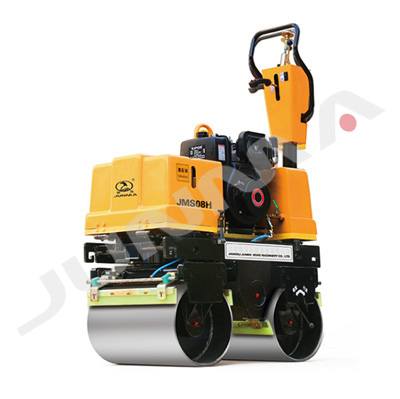

JMS08H
|
|
工作质量
|
800kg
|
|
压实宽度
|
625mm
|
|
振动频率
|
60Hz
|
|
理论振幅
|
0.5mm
|
|
激振力
|
20kN
|
|
发动机型号
|
KM186F/FA
|
|
发动机功率
|
5.7kw
|
|
整机外形尺寸
|
展开：2450x680x1200mm
折叠：1350x680x1850mm
|
|
